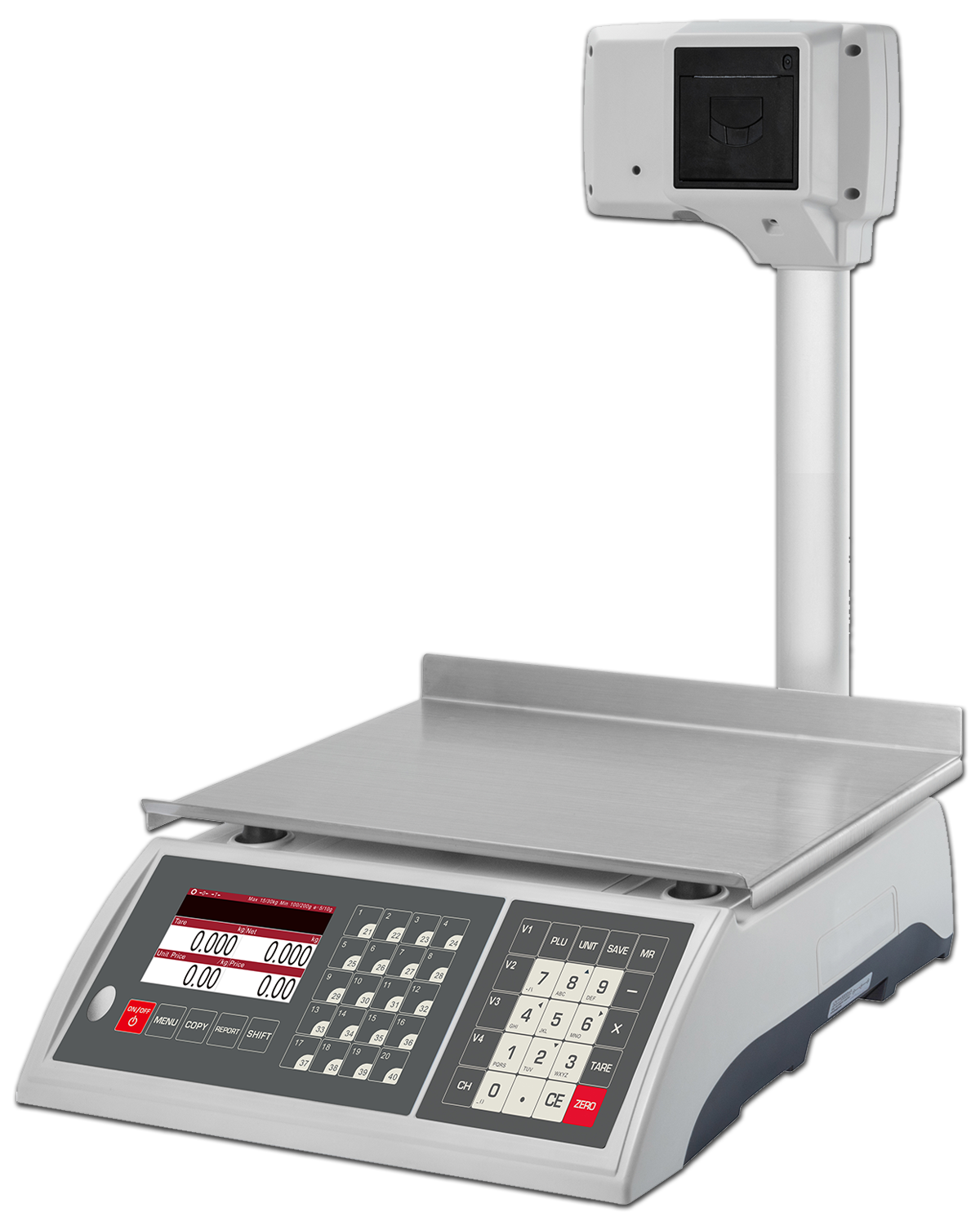

Model: JP20
| Model | Capacity (kg) | Readability (g) | Platform Size |
| JP-20 | 6/15 Kgs | 1 / 2 g | 230 X 300 mm |
| JP-20 | 15 / 30 Kgs | 2 / 5 g | 230 X 300 mm |
General Specifications |
|||
|---|---|---|---|
|
Operator display |
4.3 inch color display |
Customer display |
7 inch color display |
|
Standard |
230x300mm SSTpan |
Standard |
Receipt printer |
|
Connectivity |
RS232 interface |
Optional |
RJ45 Ethernet, Wifi, USB |
|
Optional |
Initial verification |
Capacity |
6kg/15kg, 15kg/30kg |

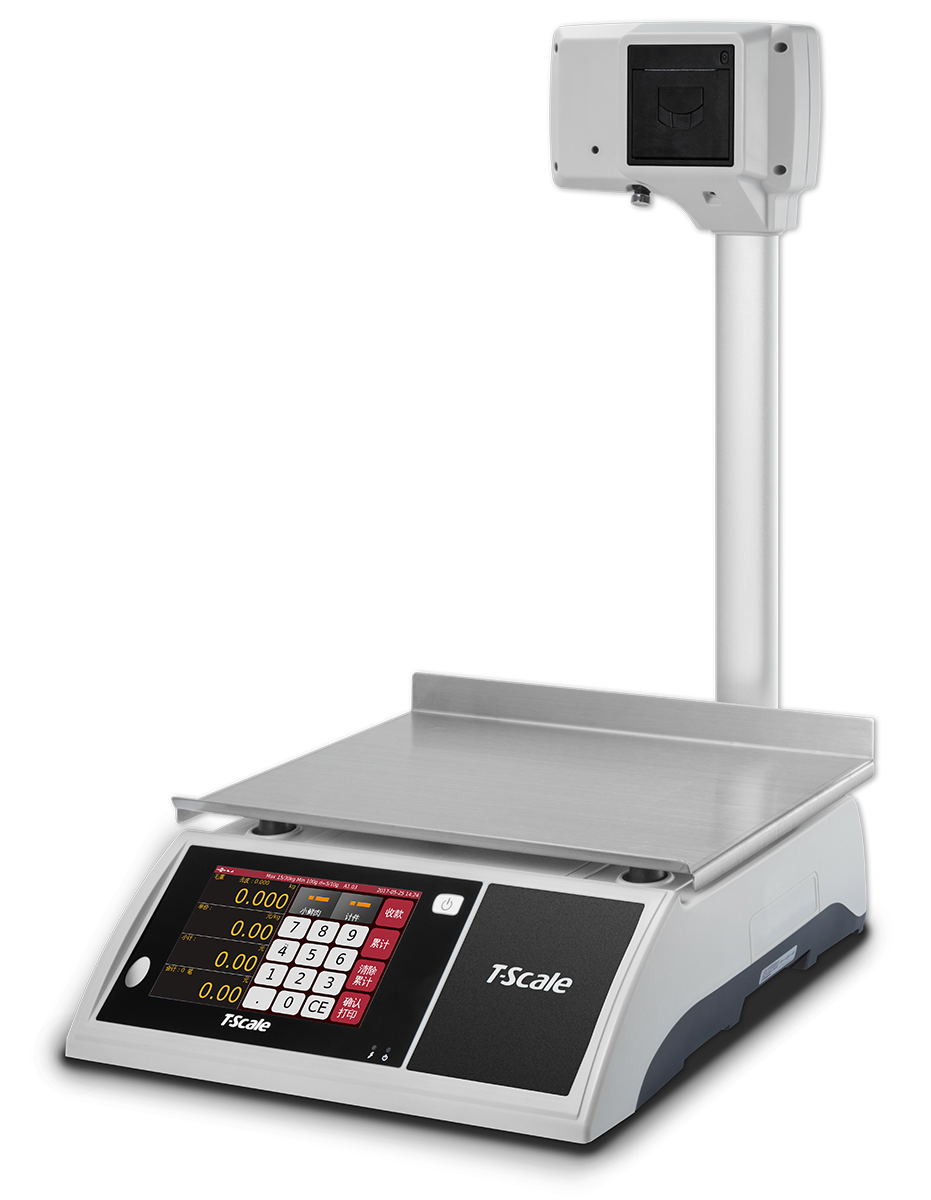

Model: JS7
| Model | Capacity (kg) | Readability (g) | Platform Size |
| JS-7 | 6/15 Kgs | 1 / 2 g | 240 X 370 mm |
| JS-7 | 15 / 30 Kgs | 2 / 5 g | 240 X 370 mm |
General Specifications |
|||
|---|---|---|---|
|
Operator display |
7’’ color touch screen operator display (800x480) |
Customer display |
Allows playing image advertisements, sales list, and product picture |
|
Standard |
Built-in high-speed thermal receipt printer |
Max. Printing width |
48mm |
|
Printing Speed |
90mm/second |
Max. Paper width |
58mm |
|
Printer Head Life |
50,000m |
Standard |
1xUSB 2.0, 1xRS232 |
|
Optional |
WIFI communication, 4G, Camera |
Capacities |
6kg/15kg; 15kg/30kg |
|
Operating Temperature |
5⁰C~35⁰C |
||

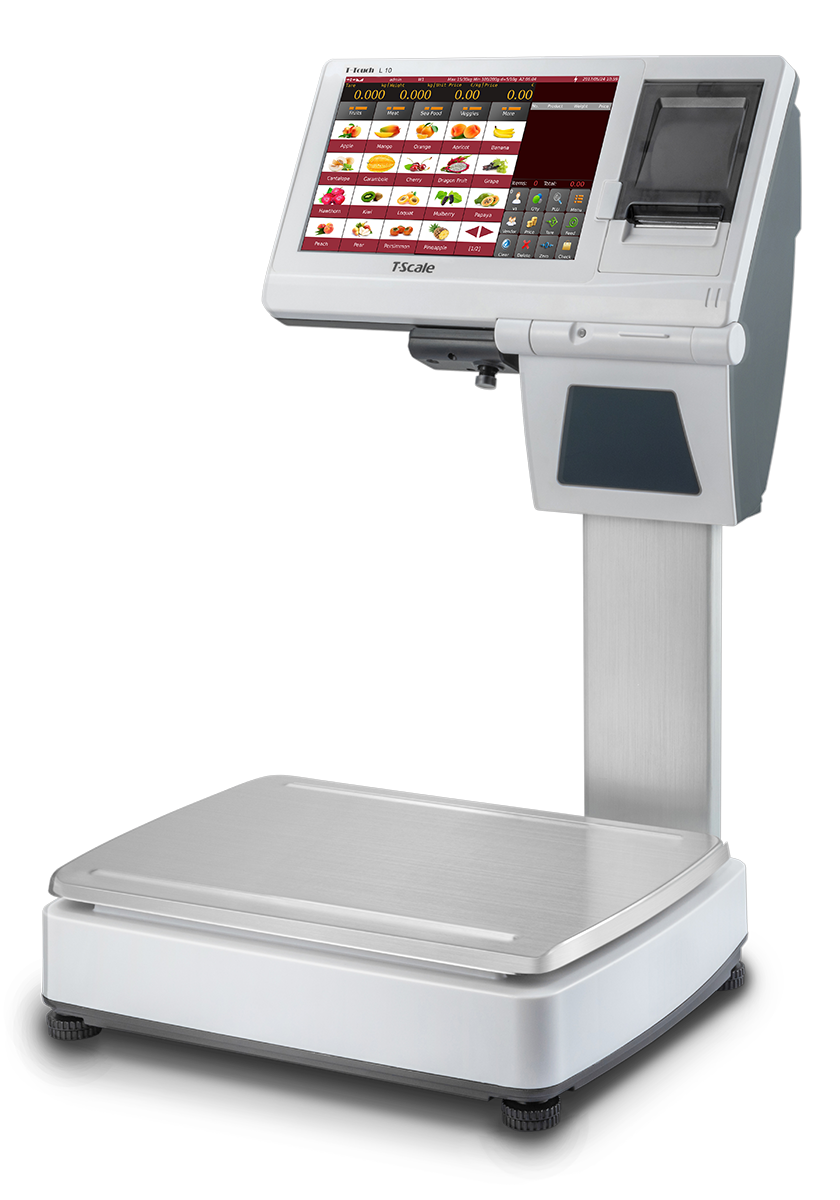

Model: L10
| Model | Capacity (kg) | Readability (g) | Platform Size |
| L-10 | 6/15 Kgs | 2 / 5 g | 280 X 385 mm |
| L-10 | 15 / 30 Kgs | 5 / 10 g | 280 X 385 mm |
General Specifications |
|||
|---|---|---|---|
|
Display |
10.1’’ color TFT LCD display (1280x800) |
Built-in |
Fintek 81866F speaker |
|
Built-in |
High-speed thermal receipt Printer |
Max. Printing width |
48mm |
|
Printing Speed |
90mm/second |
Max. Paper width |
58mm |
|
Printer Head Life |
50,000m |
Audio Jack |
4xUSB2.0; 1xRS232; 1xRJ11; 1xSD; 1xmic jack |
|
Capacities |
6kg/15kg; 15kg/30kg |
Operating Temperature |
5⁰C~+35⁰C |
|
Optional |
Camera, RFID, (Scanner, support barcode & QR code |
||

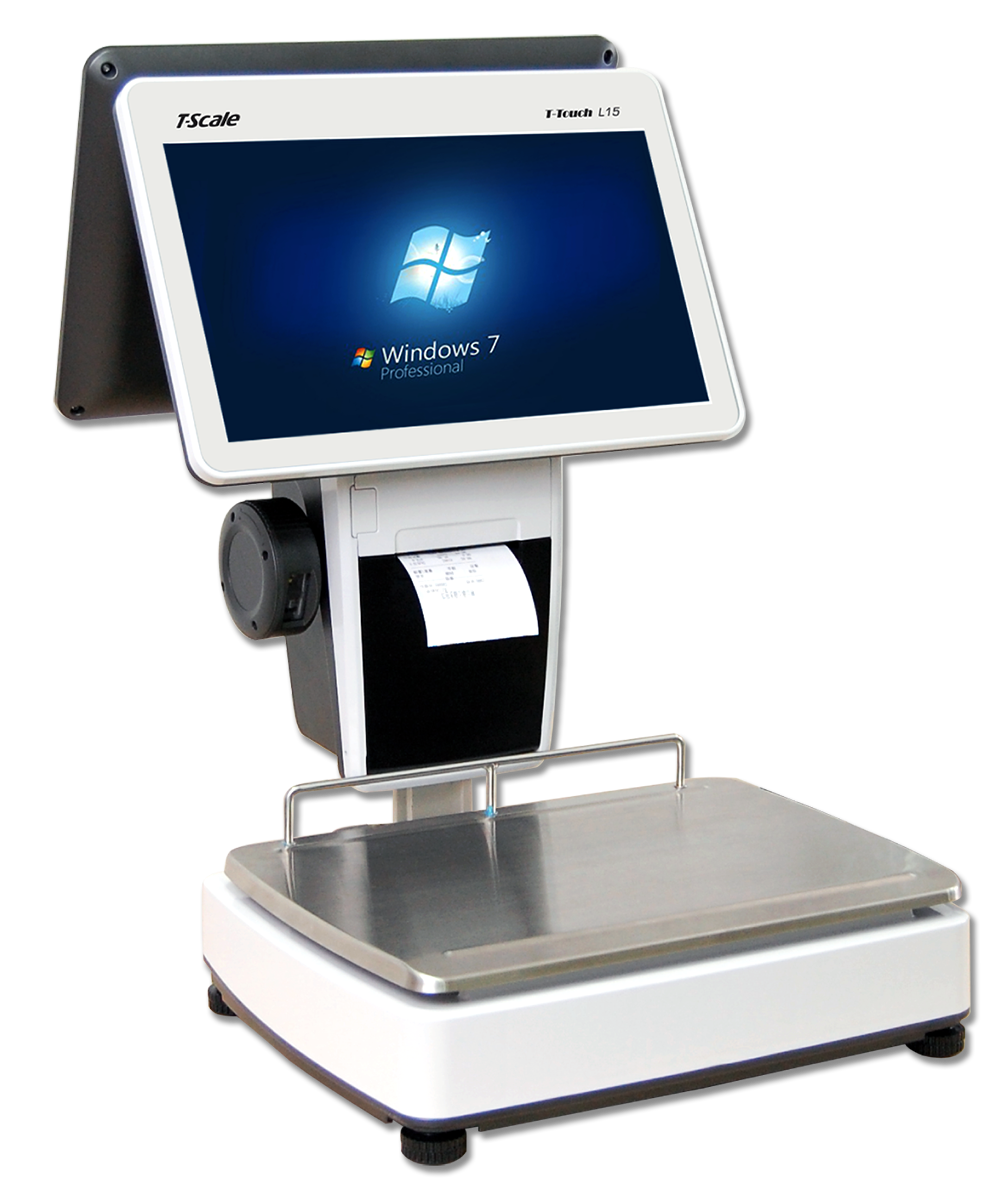

Model: L15PC-Windows
PC based architecture, running Windows or Linux operating systems. User friendly easy editable for integration of third-party devices and for running third-party software.
| Model | Capacity (kg) | Readability (g) | Platform Size |
| L-15 PC | 6/15 Kgs | 2 / 5 g | 280 X 385 mm |
| L-15 PC | 15 / 30 Kgs | 5 / 10 g | 280 X 385 mm |
General Specifications |
|||
|---|---|---|---|
|
Operator display |
15.6" color touch screen (1366x768) |
Customer display |
15.6" color customer display (Advertising & promotions 1366x768) |
|
CPU |
Intel Bay Trail SoC J1900 |
Memory |
4GB, optional up to 8GB, Memory Types DDR3L 1333 |
|
Hard Disk |
SATA 64GB SSD on Removable Drive Bay |
Supported Windows |
7/Windows POSReady 7/Windows 10/Windows 10 IoT(Default Windows 7 trial version at shipment) |
|
Graphics Specifications |
Processor Graphics Intel® HD Graphics; Graphics Base Frequency 688 MHz. Graphics Max Dynamic Frequency 854 MHZ Support Intel Quick Sync |
Video |
Supported displays 2 |
|
Capacities |
6kg/15kg; 15kg/30kg |
Pan Size |
280x385mm |
|
Built-in |
Fintek 81866F speaker |
Built-in |
High-speed thermal receipt printer |
|
Max. Printing width |
72mm; Printing Speed: 100mm/second; Paper width: 80mm: Printer Head Life: 150,000m |
Audio |
4xUSB2.0; 1xRS232; 1xRJ11; 1xVGA; 1xaudio jack: 1xHDMI |
|
Optional |
WIFI communication; RFID; (Scanner, support barcode & QR code |
||

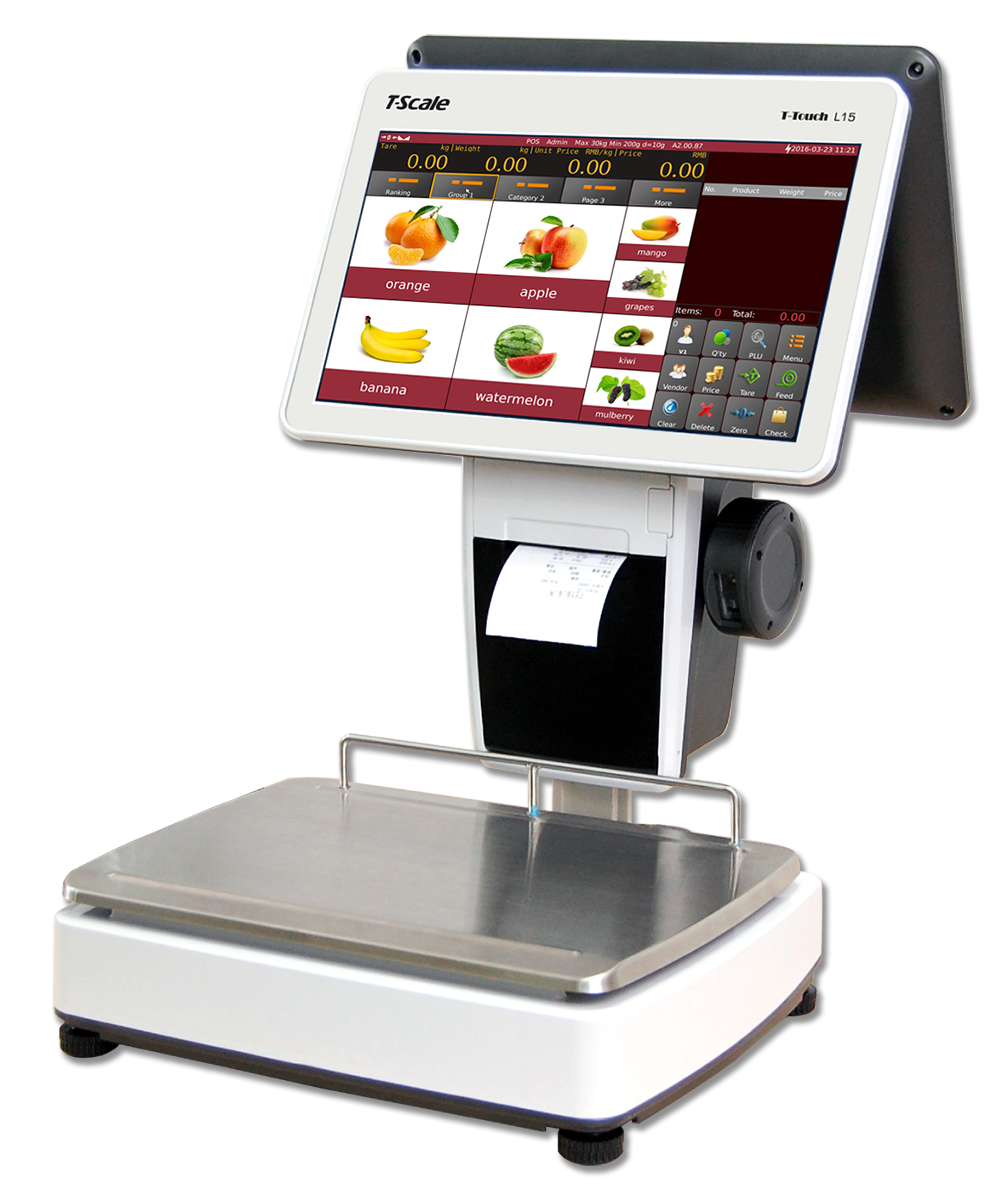

Model: L15 Linux
PC based architecture, running Windows or Linux operating systems. User friendly easy editable for integration of third-party devices and for running third-party software.
| Model | Capacity (kg) | Readability (g) | Platform Size |
|---|---|---|---|
| L-15 Linux | 6/15 Kgs | 2 / 5 g | 280 X 385 mm |
| L-15 Linux | 15 / 30 Kgs | 5 / 10 g | 280 X 385 mm |
General Specifications |
|||
|---|---|---|---|
|
Operator display |
15.6" color touch screen (1366x768) |
Customer display |
15.6" color customer display (Advertising & promotions 1366x768) |
|
CPU |
Intel Bay Trail SoC J1900 |
Memory |
4GB, optional up to 8GB, Memory Types DDR3L 1333 |
|
Hard Disk |
SATA 64GB SSD on Removable Drive Bay |
Supported Windows |
7/Windows POSReady 7/Windows 10/Windows 10 IoT(Default Windows 7 trial version at shipment) |
|
Graphics Specifications |
Processor Graphics Intel® HD Graphics; Graphics Base Frequency 688 MHz. Graphics Max Dynamic Frequency 854 MHZ Support Intel Quick Sync |
Video |
Supported displays 2 |
|
Capacities |
6kg/15kg; 15kg/30kg |
Pan Size |
280x385mm |
|
Built-in |
Fintek 81866F speaker |
Built-in |
High-speed thermal receipt printer |
|
Max. Printing width |
72mm; Printing Speed: 100mm/second; Paper width: 80mm: Printer Head Life: 150,000m |
Audio |
4xUSB2.0; 1xRS232; 1xRJ11; 1xVGA; 1xaudio jack: 1xHDMI |
|
Optional |
WIFI communication; RFID; (Scanner, support barcode & QR code |
||
